The only "Strolley" bridge in the world to clear rigorous testing by the Indian Army and DGQA

Your Rapid Response to water crossing challenges like - Defence, Disaster, Community, Connectivity, Events

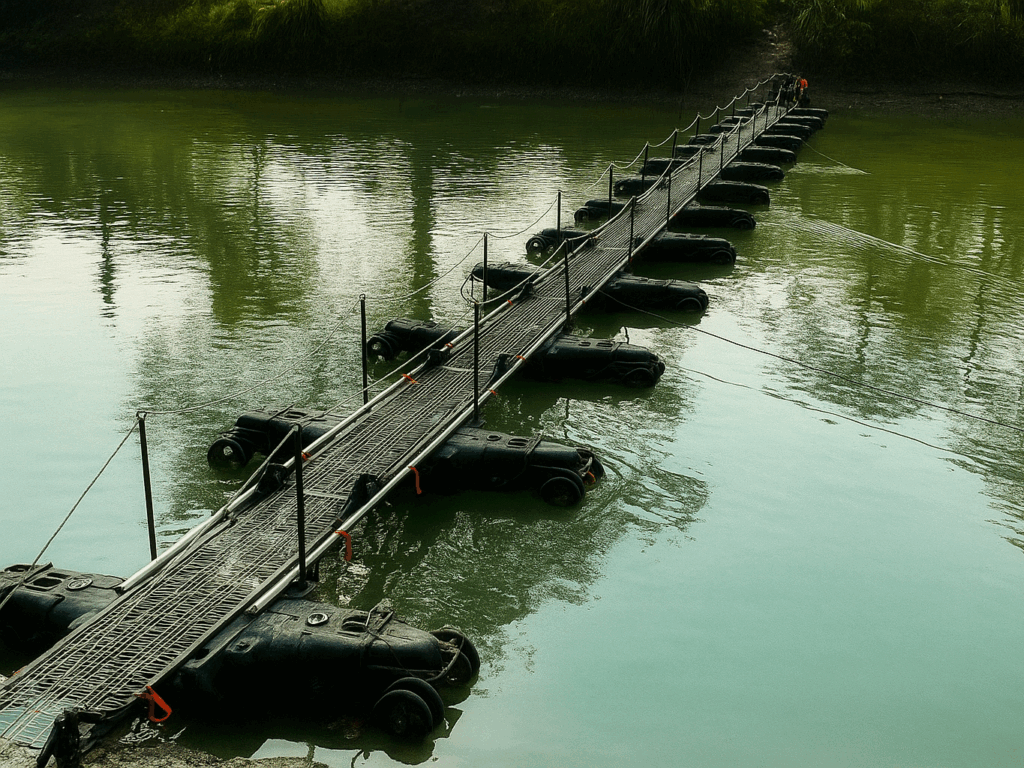

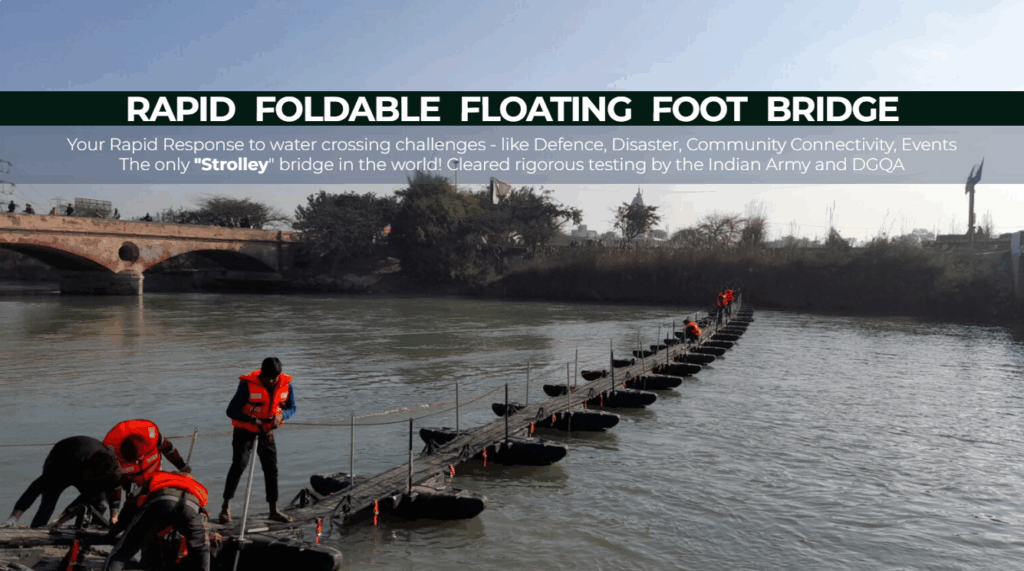

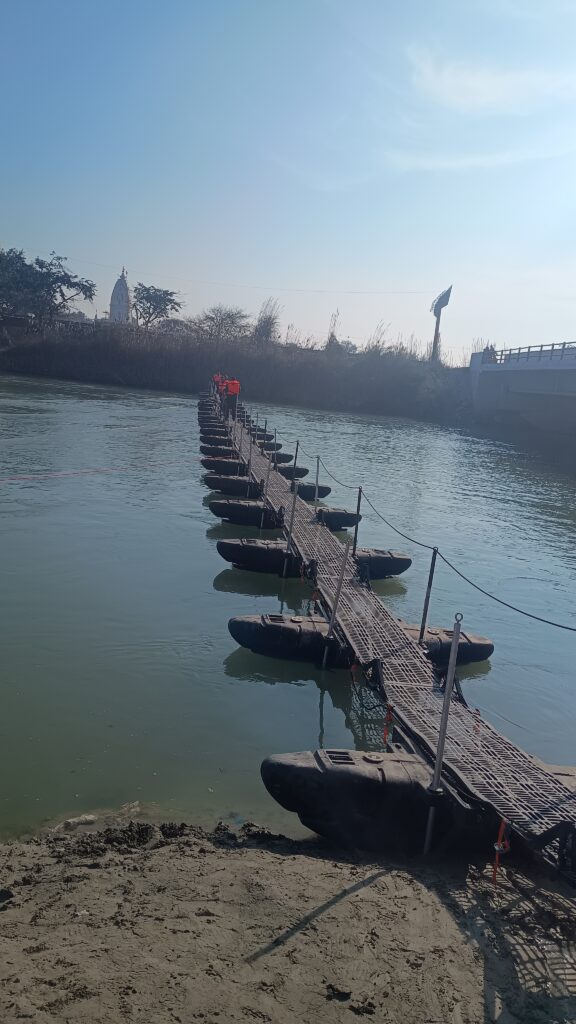

Rapid Foldable Floating Foot Bridge

Your Rapid Response to water crossing challenges - like Defence, Disaster, Community Connectivity, Events
The only "Strolley" bridge in the world! Cleared rigorous testing by the Indian Army and DGQA

Contact Us

The Only Strolley Bridge in the World!

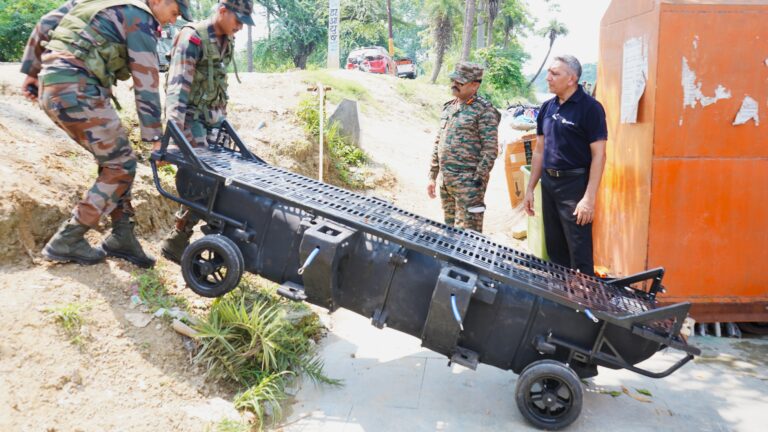

Pull bridge modules to the bridge site easily – like a strolley

Just connect without tools and get across!

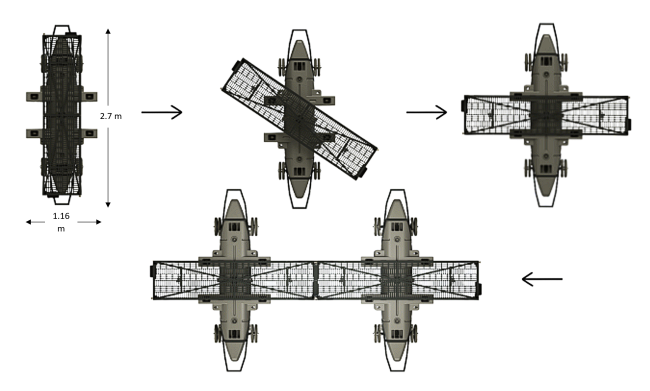

Unique Design

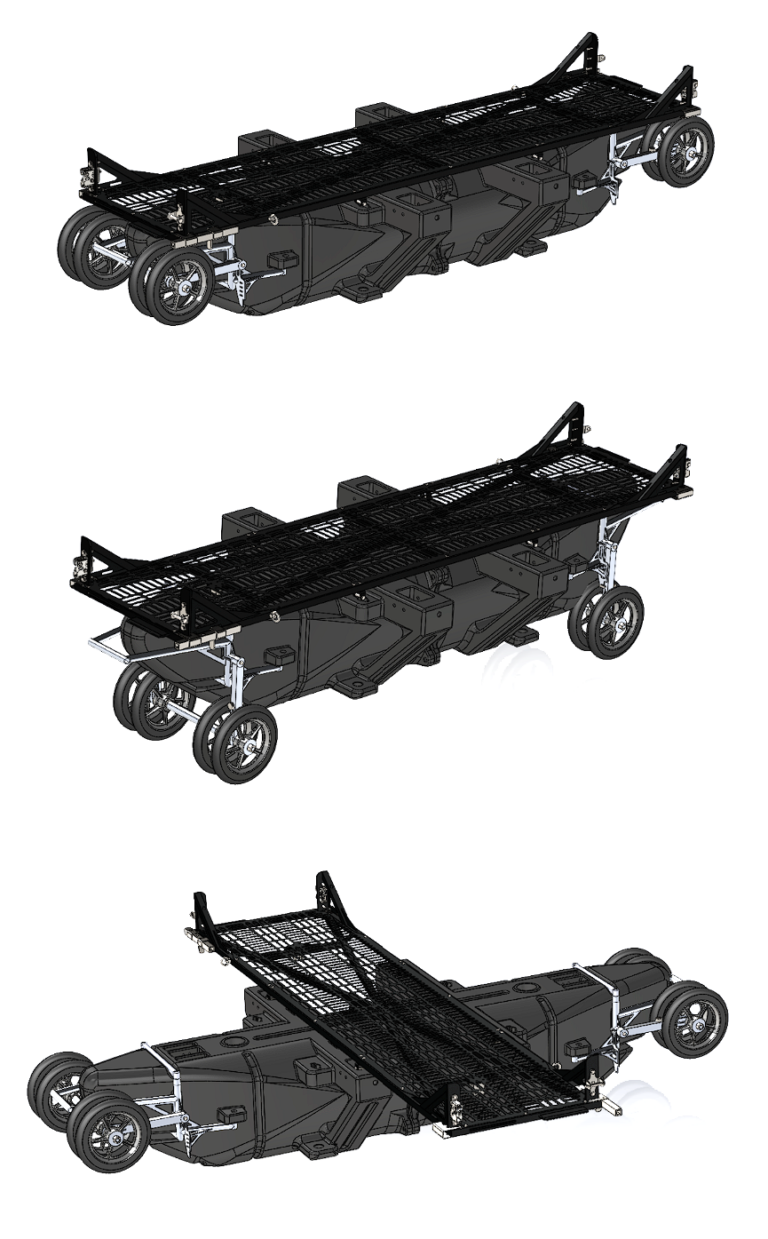

  1. The bridge is made up of identical modules.
  2. Each modules is like a wheeled trolley, for easy carriage.
  3. A module swivels open into 2.5-metre bridge span.
  4. Spans are connected together – using zero tools – to build bridges of varying spans.

Amazing Features for Defence, Disaster Response & Instant Bridging

  1. Span : Up to 50-metre
  2. Current : Up to 3-Knots

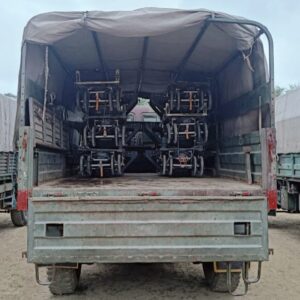

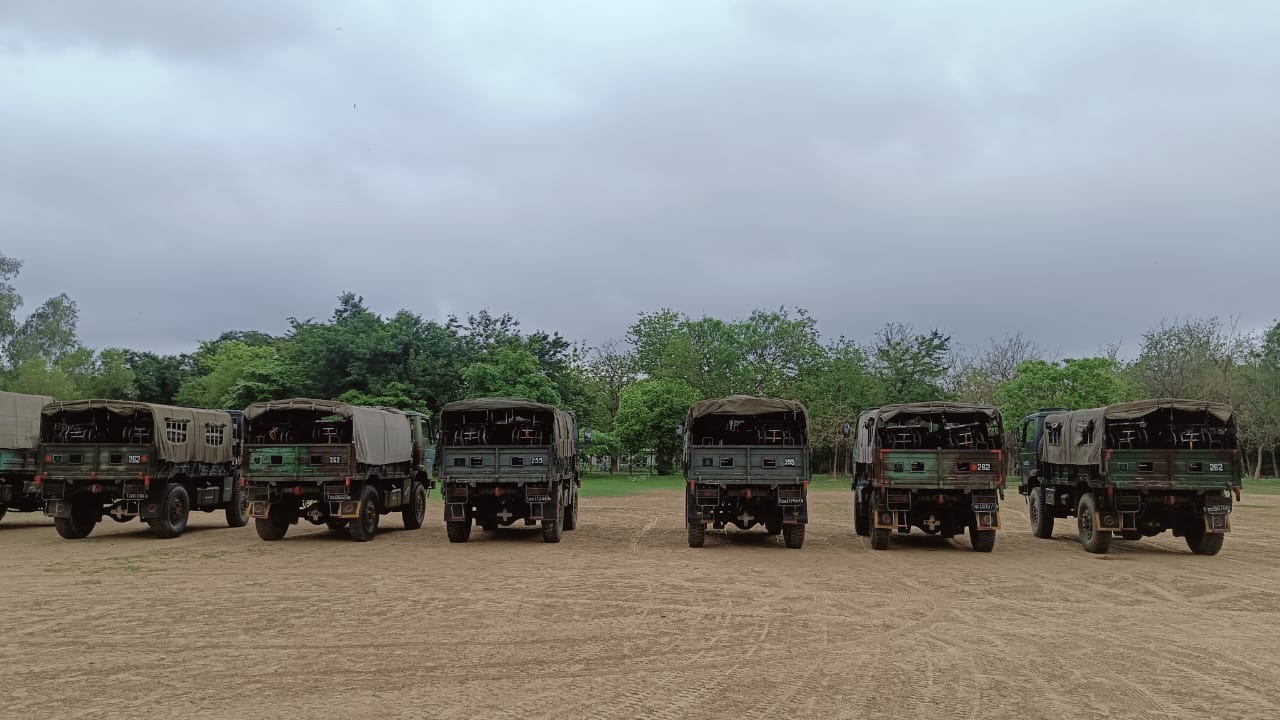

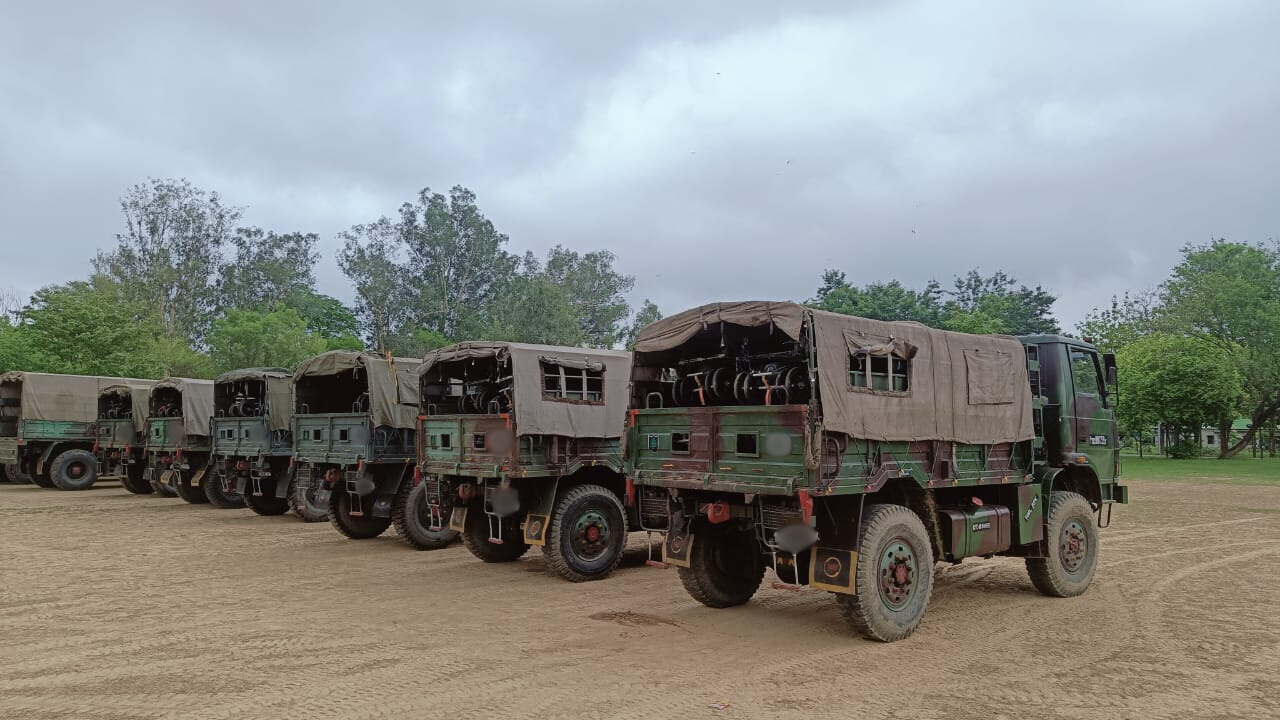

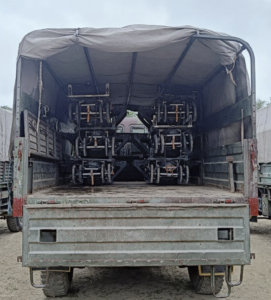

  3. Super easy transportation : Modules get stacked one-on-top of another

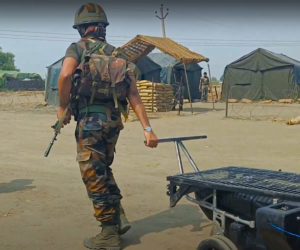

  4. Wheelbarrow : Unload and pull to bridge site like strolley

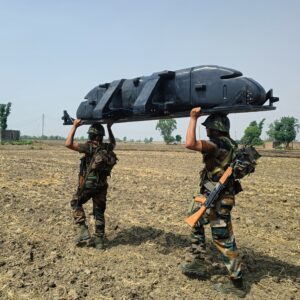

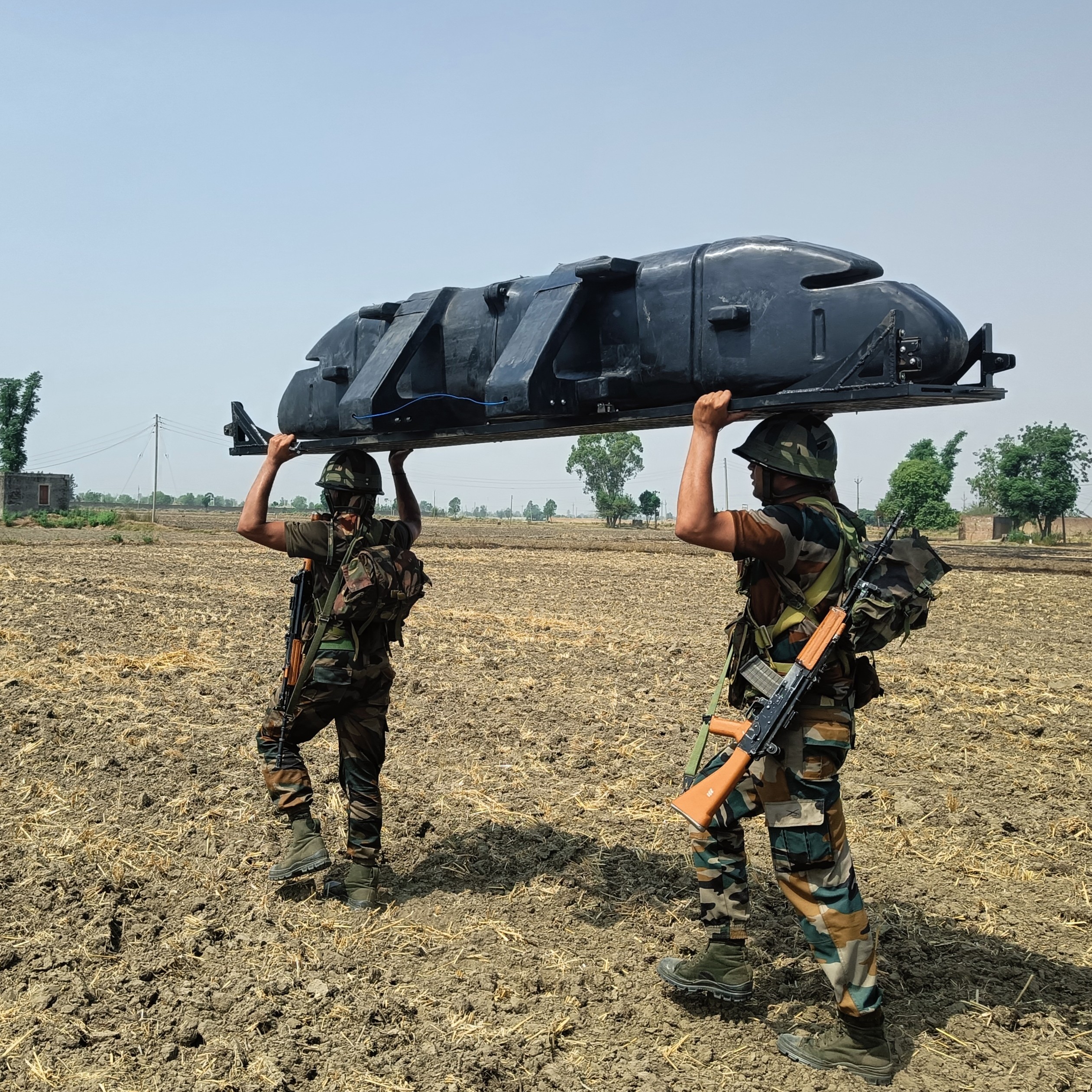

  5. Option to carry : 2-men can carry a module in undulating terrain
  6. Zero Tools : No tools needed

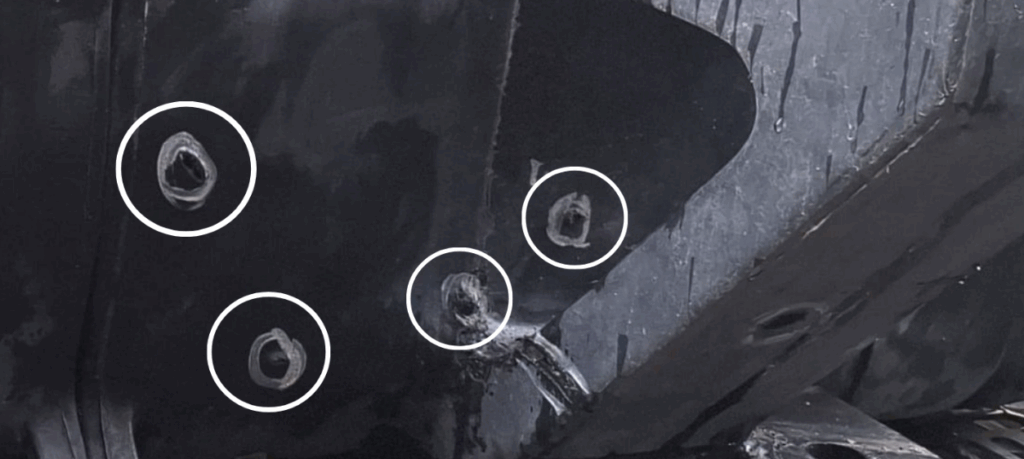

  7. Unsinkable floats : Remains very stable even after damage
  8. Combat worthy : Extremely rugged
  9. Minimum Training to launch / de-launch

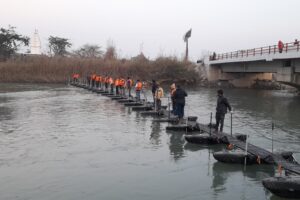

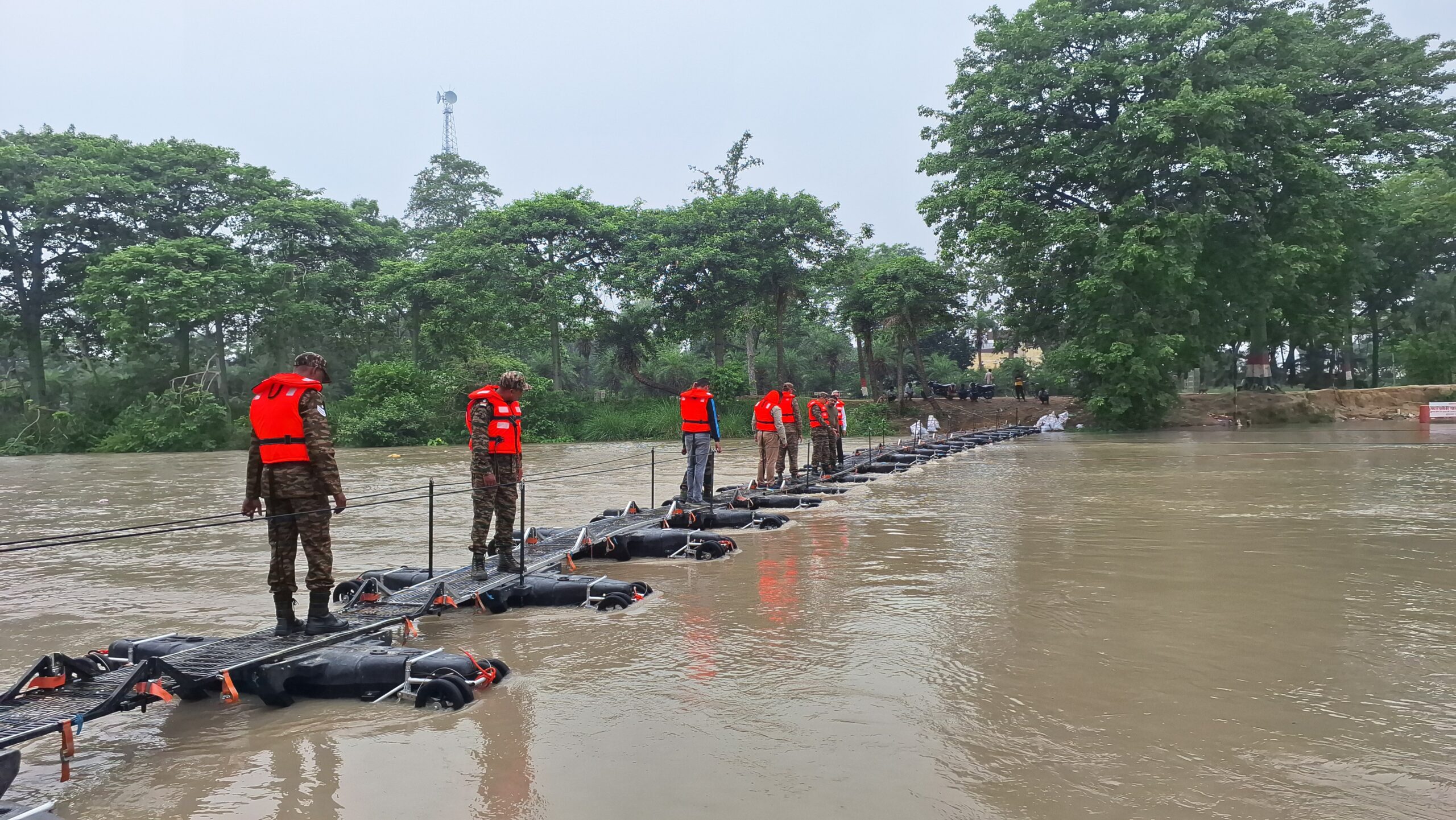

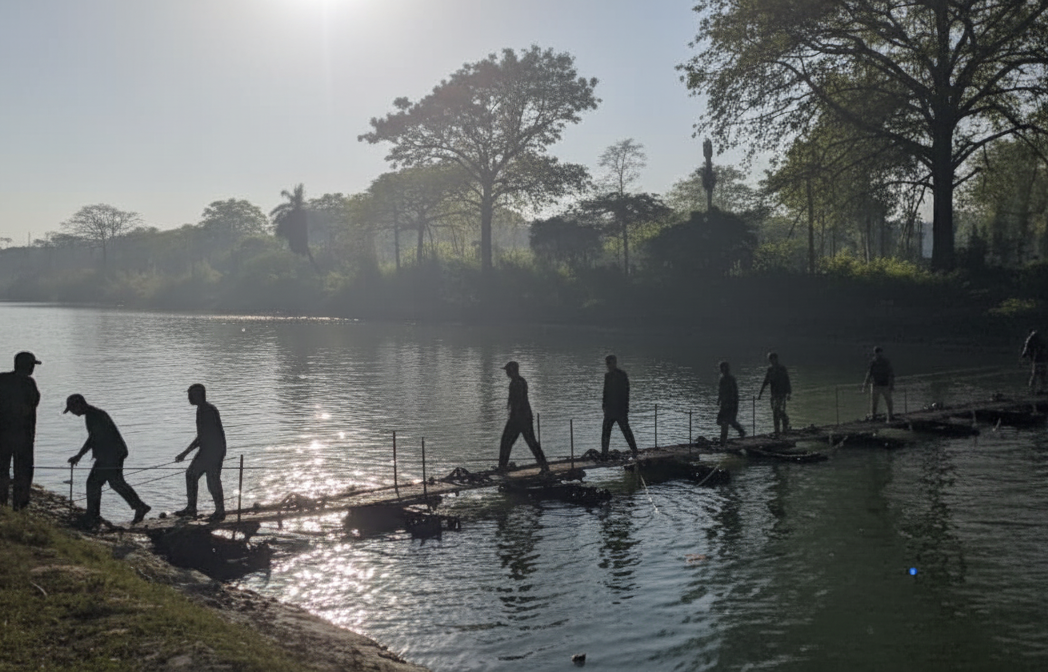

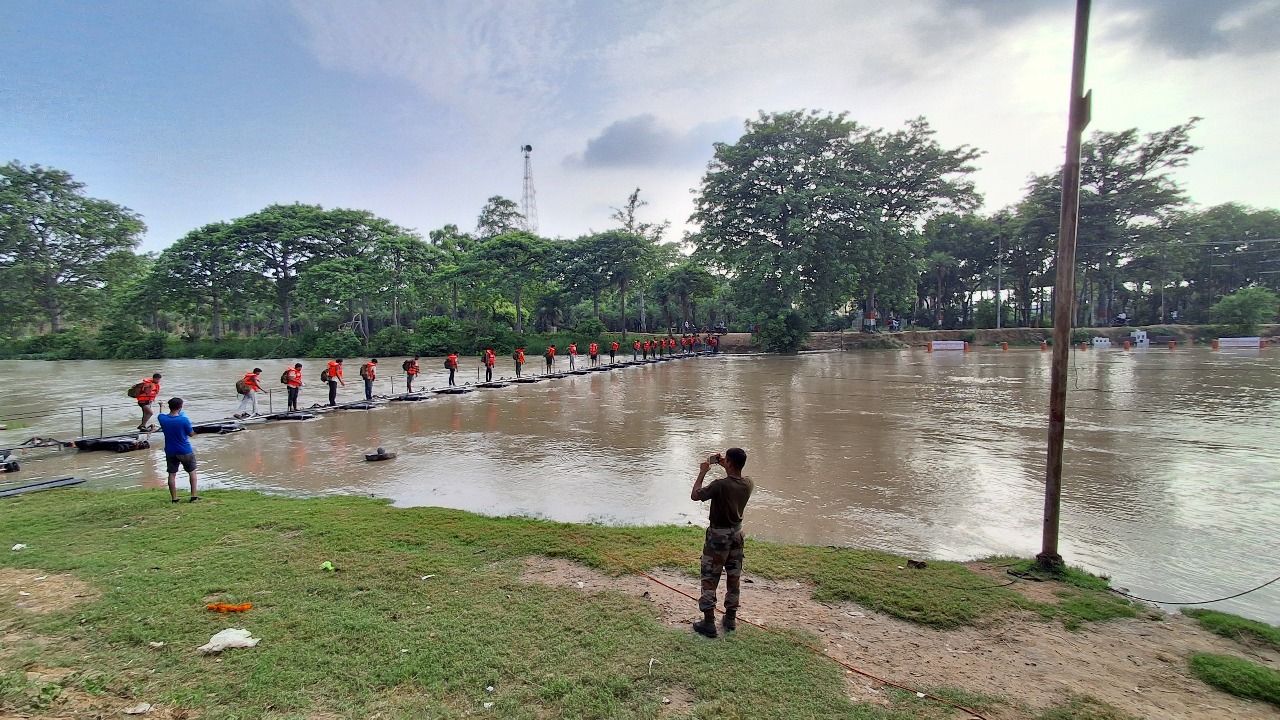

  10. Multiple persons can cross the bridge simultaneously.
  11. Prolonged deployment can be done.

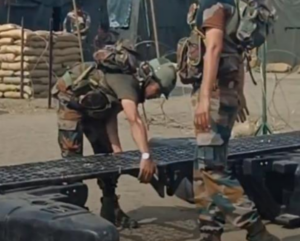

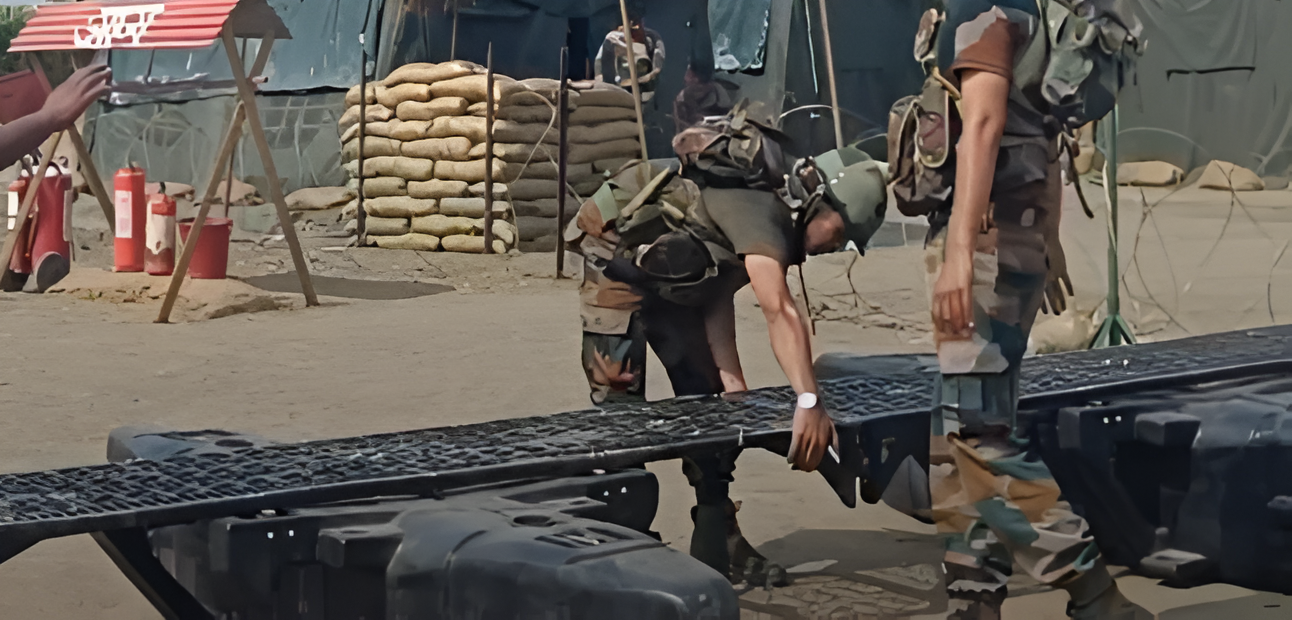

  12. Swivel, connect and launch the module at the bridge site
Contact Us

Technical Specifications


  1. Span per Module: 2.5-metre.
  2. Bridge Span: Up to 50-metre.
  3. Weight per Module: <= 80kg.
  4. Trackway Width: 600mm.
  5. Max Water Current: 3-knots.
  6. Life: 20 years / 500 launches.

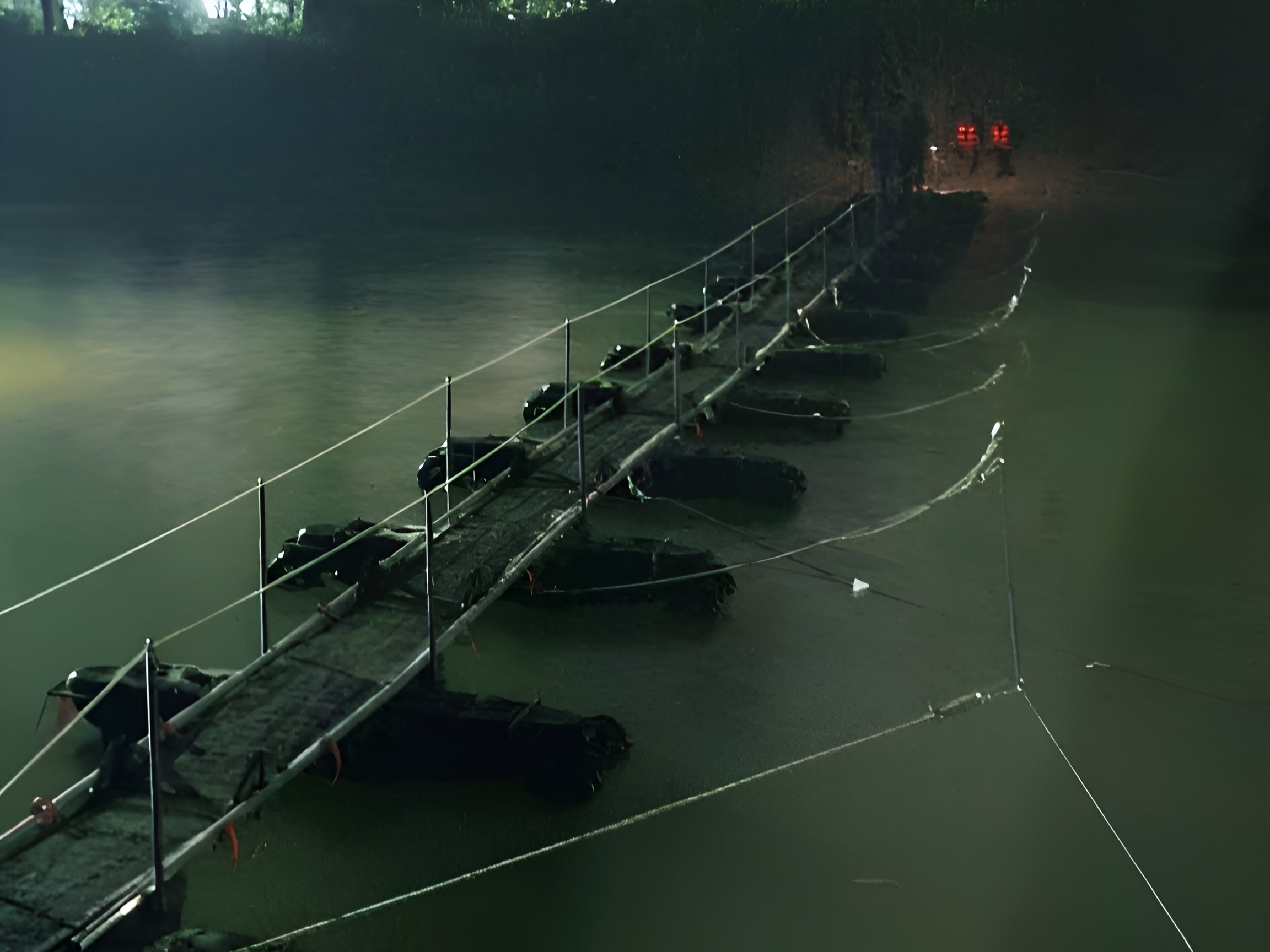

  7. Construction Time (50-m bridge): Maximum 30 minutes by day, Maximum 45 minutes by night.

Design  & Materials:

  1. 100% recyclable structural components.

  2. High strength aerospace grade aluminium alloys.

  3. Anti-skid pathway for rapid crossing and maximum safety.

  4. Fire and chemical resistant materials.

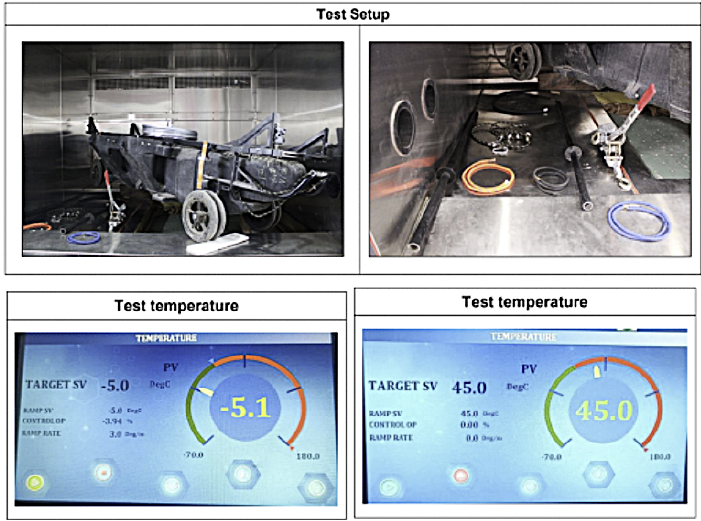

  5. Wide operating temperature range.

Certifications



  1. Altitude Test : MIL Standard

  2. Corrosion Test : ASTM Standard

  3. UV Test : ASTM Standard

  4. Anti-Skid Test : ASTM & IS Standard

  5. Successfully cleared rigorous user trials (SSCT) by the Indian Army

  6. Contact for information on additional tests

Recognition

Recognized by high-ranking army officials and Political Leaders including –

1. Honourable Prime Minister Shri Narendra Modi.

2. Defence Minister Shri Rajnath Singh.

3. Former Chief of Army Staff Gen. Manoj Pande, PVSM, AVSM, VSM.
Download the Brochure
